Chords Properties of Circle – SS2 Mathematics Lesson Note (Second Term)

Download this term · ₦1,000

Lesson note at a glance

Subject
Mathematics
Class
SS2
Term
Second Term
Topic
Chords Properties of Circle
Order
Topic 7 of 7 this term
Reading time
6 min

A chord is a straight line joining two points on the circumference of a circle. A chord that passes through the centre is a diameter.

Advertisement

Behavioural objectives

By the end of the lesson, students should be able to:

  1. name the parts and regions of a circle;
  2. state the main properties of chords of a circle;
  3. calculate the length of an arc and the perimeter of a sector;
  4. calculate the area of a sector;
  5. find the length of a chord using the radius and the semi-vertical angle;
  6. calculate the perimeter of a segment.

What are the parts of a circle?

A circle has six main parts: centre, circumference, arc, radius, chord and diameter.

  • Centre: the point in the middle of a circle.
  • Circumference: the curved outer boundary of the circle.
  • Arc: a curved part of the circumference.
  • Radius: any straight line joining the centre to the circumference. The plural is radii.
  • Chord: any straight line joining two points on the circumference.
  • Diameter: a chord that passes through the centre. It divides the circle into two equal parts.

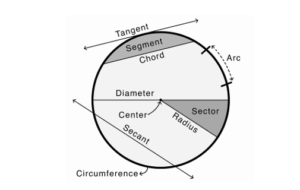

Diagram of a circle showing its parts

What are the regions of a circle?

A circle has three regions: sector, semi-circle and segment.

  • Sector: the region between two radii and the arc they enclose.
  • Semi-circle: the region between a diameter and the circumference, which is half of the circle.
  • Segment: the region between a chord and the arc it cuts off.

What are the properties of chords of a circle?

The properties of chords describe how a chord relates to the centre and to other chords.

  • Longest chord: the diameter is the longest chord of a circle.
  • Perpendicular from the centre: a line from the centre perpendicular to a chord bisects the chord.
  • Bisector of a chord: the perpendicular bisector of a chord passes through the centre.
  • Equal chords: chords of equal length are the same distance from the centre.
  • Angles at the centre: equal chords subtend equal angles at the centre.

How do you calculate the length of an arc and the perimeter of a sector?

The length of an arc is the fraction θ/360° of the circumference of the circle.

Advertisement

Take a circle with centre O and radius r. Its circumference is 2πr.

  • Length of arc XY: L = (θ ÷ 360°) × 2πr
  • θ: the angle subtended at the centre by arc XY.
  • r: the radius of the circle.
  • Perimeter of sector XOY: two radii plus the arc, so Perimeter = 2r + (θ ÷ 360°) × 2πr

Worked example 1: finding an angle from arc lengths

An arc of length 28 cm subtends 240° at the centre of a circle. In the same circle, what angle does an arc of length 35 cm subtend? (π = 22/7)

  1. Write the formula: L = (θ ÷ 360°) × 2πr.
  2. Substitute L = 28 and θ = 240°: 28 = (240 ÷ 360) × 2 × (22/7) × r.
  3. Simplify: 28 = (2/3) × (44/7) × r = 88r ÷ 21.
  4. Make r the subject: r = (28 × 21) ÷ 88 = 147/22 cm.
  5. For the 35 cm arc: 35 = (θ ÷ 360) × 2 × (22/7) × (147/22).
  6. Simplify: 35 = (θ ÷ 360) × 42.
  7. Solve: θ = (35 × 360) ÷ 42 = 300°.

The 35 cm arc subtends 300° at the centre.

Worked example 2: perimeter of a sector

Calculate the perimeter of a sector of radius 7 cm and angle 108°. (π = 22/7)

  1. Write the formula: Perimeter = 2r + (θ ÷ 360°) × 2πr.
  2. Substitute: = 2 × 7 + (108 ÷ 360) × 2 × (22/7) × 7.
  3. Simplify: = 14 + (3/10) × 44.
  4. Work out the arc: (3/10) × 44 = 13.2 cm.
  5. Add: 14 + 13.2 = 27.2 cm.

How do you calculate the area of a sector?

The area of a sector is the fraction θ/360° of the area of the whole circle.

  • Formula: Area = (θ ÷ 360°) × πr²
  • θ: the angle of the sector at the centre.
  • r: the radius of the circle.

Worked example 3: area of a sector

Find the area of a sector of radius 7 cm and angle 90°. (π = 22/7)

  1. Substitute: Area = (90 ÷ 360) × (22/7) × 7 × 7.
  2. Simplify: = (1/4) × 154.
  3. Answer: = 38.5 cm².
Advertisement

How do you find the length of a chord and the perimeter of a segment?

The length of a chord AB is 2r sin θ, where r is the radius and θ is the semi-vertical angle.

The semi-vertical angle is half of the angle that the chord subtends at the centre.

O A B C θ r
Chord AB, radius r and perpendicular OC. Angle AOB = 2θ. Based on standard mathematics texts.

How is the chord formula derived?

  1. Draw OC perpendicular to chord AB, with angle AOB = 2θ.
  2. OC bisects AB and angle AOB, so angle AOC = θ.
  3. In the right-angled triangle OCA: AC ÷ r = sin θ.
  4. Cross-multiply: AC = r sin θ.
  5. Since AB = 2 × AC, the chord is AB = 2r sin θ.

What is the perimeter of a segment?

The perimeter of a segment is the length of the chord plus the length of the arc.

  • Chord AB: 2r sin θ.
  • Arc ADB: subtends 2θ at the centre, so its length is (2θ ÷ 360°) × 2πr.
  • Perimeter of segment ACBD: 2r sin θ + (2θ ÷ 360°) × 2πr

Worked example 4: angle and arc from a chord

In a circle of radius 6 cm, a chord is drawn 3 cm from the centre.

  1. Calculate the angle subtended by the chord at the centre of the circle.
  2. Find the length of the minor arc cut off by the chord. (π = 22/7)

Solution to (a)

  1. Let angle AOB = 2θ, where θ is the semi-vertical angle.
  2. cos θ = 3 ÷ 6 = 1/2 = 0.5000.
  3. θ = cos⁻¹ 0.5000 = 60°.
  4. Required angle = 2θ = 2 × 60° = 120°.

Solution to (b)

  1. Length of minor arc ADB = (120 ÷ 360) × 2 × (22/7) × 6.
  2. = (1/3) × (264/7) = 88/7 cm.
  3. = 12 4/7 cm.

What are the key formulae for circles?

These are the formulae used in this lesson, where r is the radius and θ is the angle at the centre.

Advertisement
Quantity Formula
Length of arc (θ ÷ 360°) × 2πr
Perimeter of sector 2r + (θ ÷ 360°) × 2πr
Area of sector (θ ÷ 360°) × πr²
Length of chord (angle 2θ at centre) 2r sin θ
Perimeter of segment (angle 2θ at centre) 2r sin θ + (2θ ÷ 360°) × 2πr

Evaluation

  1. State the difference between a chord and a diameter.
  2. Write the formula for the length of an arc that subtends an angle θ at the centre of a circle of radius r.
  3. Calculate the perimeter of a sector of a circle of radius 14 cm, the angle of the sector being 90° (π = 22/7).
  4. Write the formula for the length of a chord AB in terms of r and the semi-vertical angle θ.
  5. Write the formula for the perimeter of a segment whose chord subtends 2θ at the centre.

Assignment

Answer all the questions below. Use π = 22/7.

  1. Calculate the area of a sector of a circle of radius 6 cm which subtends an angle of 70° at the centre. A. 44 cm² B. 22 cm² C. 66 cm² D. 11 cm² E. 16.5 cm²
  2. What is the angle subtended at the centre of a sector of a circle of radius 2 cm if the area of the sector is 2.2 cm²? A. 120° B. 31½° C. 43° D. 58° E. 63°
  3. What is the radius of a sector of a circle which subtends 140° at its centre and has an area of 99 m²? A. 18 m B. 27 m C. 9 m D. 30 m E. 24 m
  4. A sector of 80° is removed from a circle of radius 12 cm. What area of the circle is left? A. 253 cm² B. 704 cm² C. 176 cm² D. 125 cm² E. 352 cm²
  5. An arc of a circle of radius 7 cm is 14 cm long. What angle does the arc subtend at the centre of the circle?
  6. An arc of a circle whose radius is 10 cm subtends an angle of 60° at the centre. Find the length of the arc.
